What ASIL level of Tesla's ADCU? How Tesla do to achieve?
ChatGPT said:

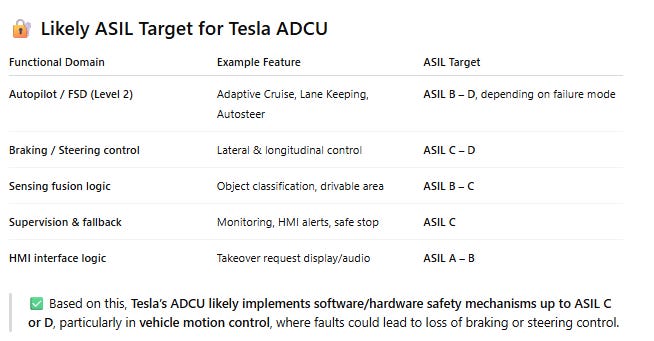

Tesla doesn’t publicly disclose the full ASIL (Automotive Safety Integrity Level) rating of its ADCU (Automated Driving Control Unit), but we can infer key points based on:
The functionality of the ADCU (e.g., Autopilot, FSD)
Tesla’s design philosophy
Industry safety standards (ISO 26262) and how other OEMs approach similar systems
🛠️ How Tesla Achieves Functional Safety (or Tries To)
While Tesla is not ISO 26262-certified like many traditional OEMs, it uses alternative methods and architecture-level solutions:
1. System Redundancy
Uses a dual-computer architecture (main + backup) in newer models with FSD Computer (HW3 and HW4).
Has redundant power supply paths and redundant CAN buses to safety-critical ECUs (braking, steering).
2. Software-Centric Architecture
Tesla takes a “fail operational” approach: design to continue operating safely even if a fault occurs.
Updates FSD/Autopilot software via OTA, with aggressive real-world fleet learning and shadow mode validation.
3. Data-Driven Safety Validation
Uses massive fleet data collection to identify safety edge cases.
Validates AI/perception under real-world conditions, beyond what ISO 26262 traditionally mandates.
4. Functional Isolation
Safety-critical motion control (brake, steer, propulsion) is typically handled in ASIL-compliant domain ECUs (e.g., Bosch iBooster or ZF EPB), separate from non-critical logic.
5. Failsafe Mechanisms
If FSD fails or loses confidence, it alerts driver and disengages, requiring manual takeover.
Hands-on detection, driver alerts, and fallback to manual control are key to Tesla’s Level 2 defense.

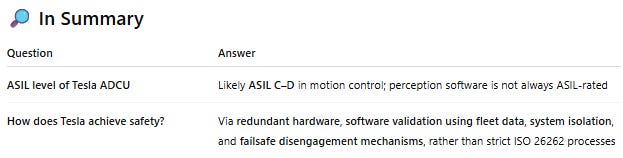

⚖️ Controversy: Tesla vs ISO 26262
Tesla does not follow ISO 26262 strictly across the board.
Critics argue its FSD doesn’t align with ASIL-D-level rigor, especially in AI-based perception and decision-making.
However, Tesla’s legal defense is based on the claim that the driver is always responsible, since FSD is still SAE Level 2.
Would you like a comparison with how a traditional OEM (e.g., BMW, Toyota) designs their ADCU under ASIL-D or want a sample ASIL decomposition for such an ADCU architecture?
You said:
what is shadow mode validation
ChatGPT said:

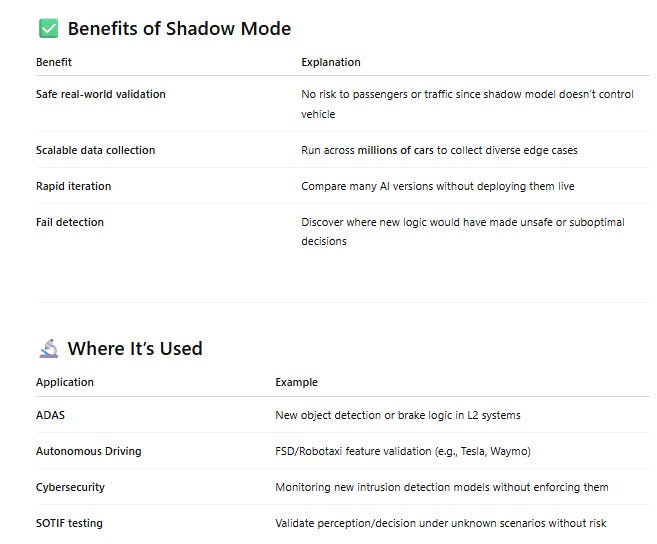

Shadow mode validation is a safety validation technique used primarily in AI-based ADAS and autonomous driving systems. It allows developers to test and evaluate new algorithms or features in real-world conditions without affecting the actual vehicle behavior.
🕶️ What Is "Shadow Mode"?

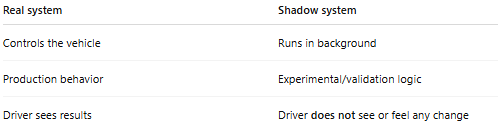

In shadow mode, a new or experimental function (e.g., lane keeping, object detection, decision-making) runs in parallel with the production system — but its outputs are not used to control the vehicle.
🧠 Example: Tesla FSD Shadow Mode
Let’s say Tesla is testing a new lane change AI model:
The current FSD version controls the car.
The new version (shadow model) runs silently in parallel.
Tesla compares:
What the real system chose
What the shadow model would have chosen
If they differ → log the scenario for analysis and refinement
Tesla famously uses its fleet to collect billions of miles of shadow mode data before releasing new FSD updates.
⚠️ Important Caveat
Shadow mode is not a substitute for formal functional safety or ISO 26262 validation.
It’s mainly used to validate data-driven AI performance or build safety cases for real-world robustness, especially in areas where simulation and lab testing are insufficient.
Would you like a sample validation plan using shadow mode for a perception or planning function in an EV/ADAS system?
You said:
what is HW3 and HW4
ChatGPT said:

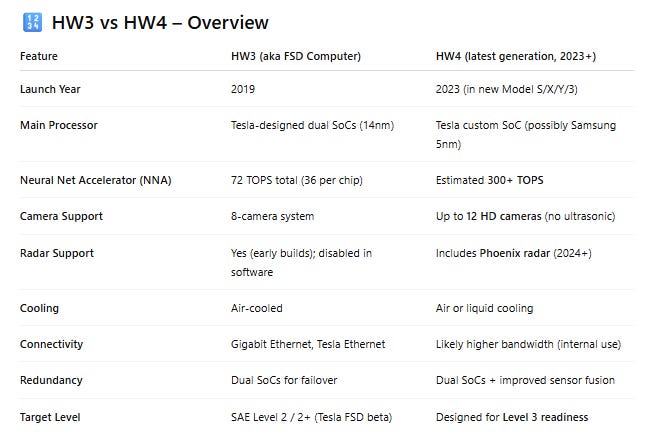

HW3 and HW4 refer to the third and fourth generations of Tesla's Full Self-Driving (FSD) computer, also called the Autopilot Hardware (HW) platform. These are custom-designed Automated Driving Control Units (ADCUs) developed in-house by Tesla to power its Autopilot and FSD software stack.
🔍 HW3 (FSD Computer v1)
Installed from mid-2019 onward in all Tesla models.
Replaced Nvidia’s Drive PX2 in HW2.5.
Features:
2 custom Tesla chips for redundancy
36 TOPS per chip (total ~72)
Handles perception, planning, control onboard
Software: Powers FSD Beta and Autopilot
🆕 HW4 (FSD Computer v2)
First appeared in 2023 Model S/X, then in Model 3 Highland.
Includes:
Higher compute power (reportedly >300 TOPS)
Upgraded camera suite (higher resolution, wider FOV)
Return of radar (Tesla’s Phoenix radar)
Designed for future Level 3 autonomous capability
🚗 Tesla still treats HW4 vehicles as Level 2 systems legally. But HW4 is considered "hardware-capable" for higher automation (with future software).
🔄 Can HW3 vehicles upgrade to HW4?
❌ No. Tesla has stated there is no retrofit path from HW3 to HW4 due to:
Different camera and sensor configurations
Wiring harness and mechanical layout differences
HW3 can still run FSD Beta, but HW4 is required for Tesla's long-term FSD vision.
Would you like a visual comparison or a technical spec sheet between HW3 and HW4, or how they map to ASIL levels?
